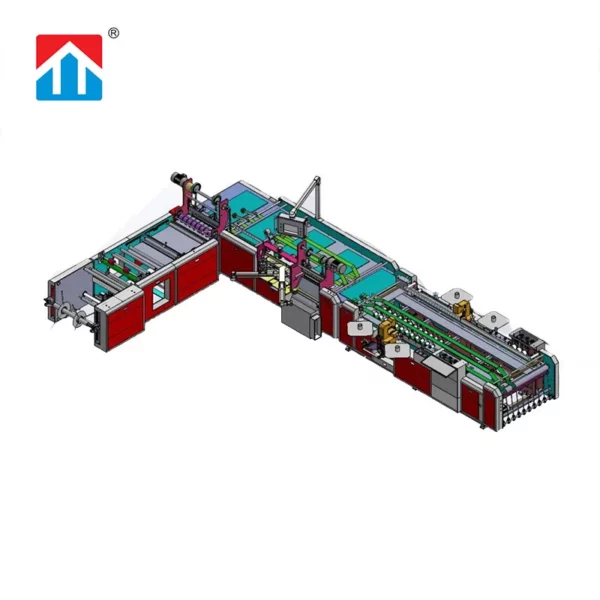

Valve Bag Cutting Seaming And Folding Machine

【AGENT WANTED!】Are You Interested In Being Our Agent? You’re welcome to contact us!

Valve Bag Cutting Seaming And Folding Machine

1. Auto heat or cold cutting and sewing for pp woven cement bag to save the labor.
2. Touch screen (Delta), PLC (OMRON), servo motor (Kaizheng) to ontrol the length of bag precisely
3. The mouth of the bag is easy to open after heating cutting

Performance and characteristics:

1. Auto heat or cold cutting and sewing for pp woven cement bag to save the labor.
2. Touch screen (Delta), PLC (OMRON), servo motor (Kaizheng) to ontrol the length of bag precisely
3. The mouth of the bag is easy to open after heating cutting
4. Auto counting, integrated feeding.
5. Auto rolling up, convenient operation.
6. Voltage is 380V / 50HZ / 3PHASE (can be customized)
7. The sewing machine head (shang peng brand) with single needle or double stitch
8. Software is bilingual in Chinese and English
9. The cloth roll can be folded or not folded, but the shape of the valve mouth and the packaging effect are different.
The packaging effect of the finished bag after folding the M edge is more beautiful and has a three-dimensional sense of the square; without folding the M edge, the bag body is more rounded after packaging, and the valve mouth will not leak.
10. Note: The sewing part can be sealed with cold or hot glue, which can be customized according to customer needs. The optional price is calculated separately

Technical Data:

Model KWQ-700
Max. Diameter Of Unwinding Roll (Mm) 1400mm
Finished Bag Width 300-700mm
Finished Bag Length(Mm) 450-1100mm
“7” shape mouth size(Mm) Conventional 90mm, 100mm, special needs can also be adjusted
Cutting Precision(Mm) +-2mm
Production Capacity 28-38pcs/min
Gross Power 6kw
Installing Dimensions (L*W*H)(Mm) 9000*6000*1700mm
Weight (Kg) About 3000kgs
