*PLC centralized control is adopted for electric controlling, frequency speed regulation is adopted as well, which is convenient and stable.
*PLC centralized control is adopted for electric controlling, frequency speed regulation is adopted as well, which is convenient and stable.
*It is high-efficient and energy economical. The highest rotation speed of machine can reach 180r/min and the power is 2.2 KW, which can save 10 thousand degree electricity one year, compared with the original circular loom whose power is 4KW.

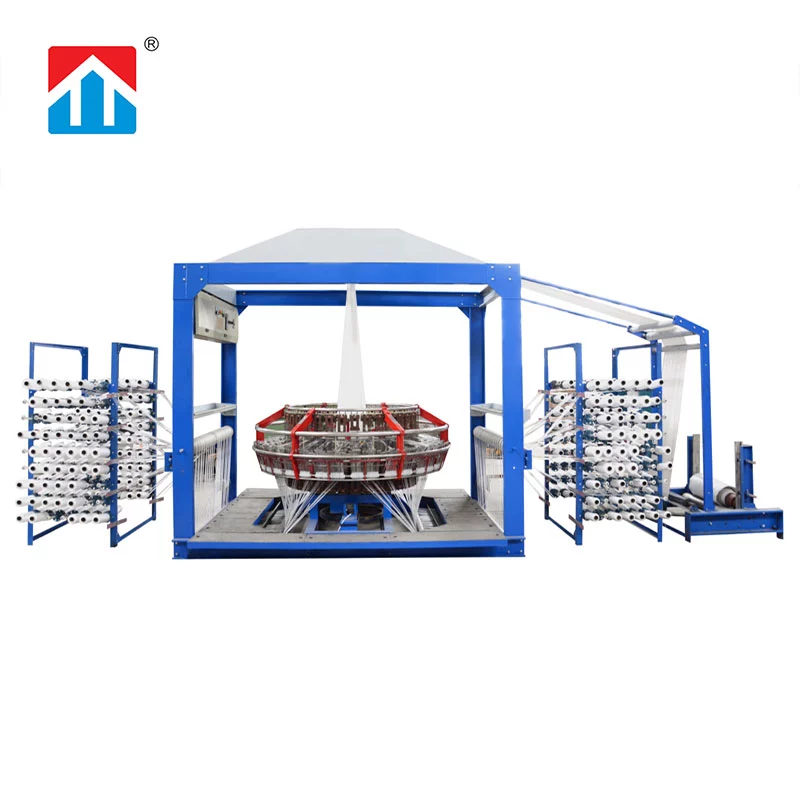

| MODEL | Qf-850/6 |
| Number of shuttle | 6 |
| Floding width of weaving (mm) | 300-850 |
| Max. number of warp | 720 |
| Rotational speed of Main.Motor (r/min) | 120-180 |
| Production (m/min) | 1.8-2.7 |
| Power of main motor(kw) | 2.2/3 |
| Total power (kw) | 2.7/3.5 |
| Installing Dimensions (L×W×H) (mm) | 9100×2300×2730 |
| Weight (kg) | 2100 |
