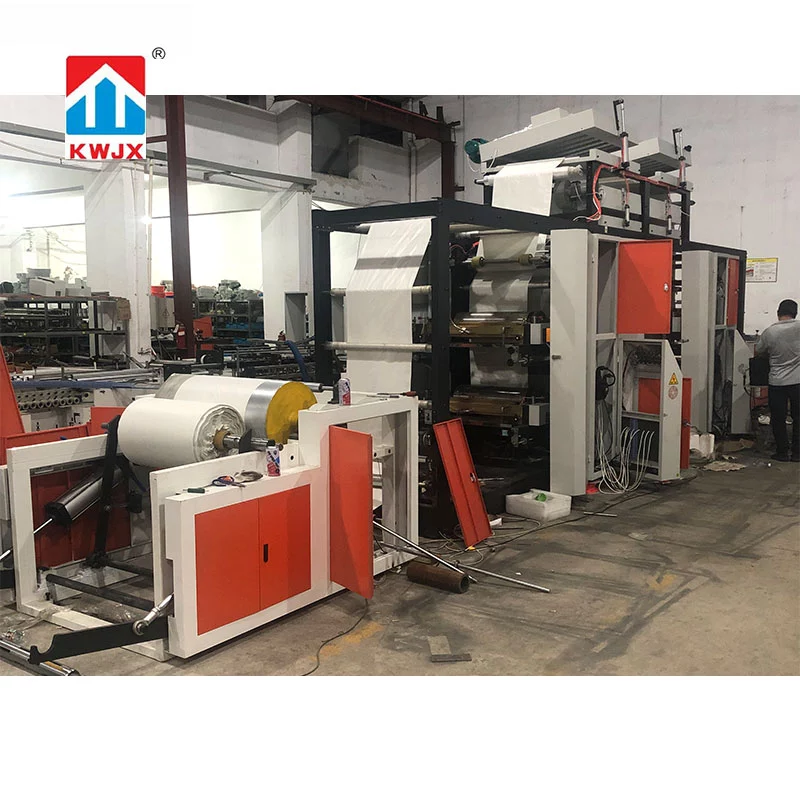

Paper-plastic bag laminating flexographic printing machine

This machine prints the required text and trademark patterns on the surface of pp woven bag. The printing is completed at one time. The unit adopts Timing belt transmission and helical gear color matching.

Performance and characteristics:

This machine prints the required text and trademark patterns on the surface of pp woven bag. The printing is completed at one time. The unit adopts Timing belt transmission and helical gear color matching. Stable start and stop, low noise; Advanced design and long service life; High production efficiency. This machine has a continuous printing function to improve work efficiency. It adopts a speed reducing motor frequency converter control, automatic counting, pneumatic clutch of the plate roller, automatic stop of material cutting, shutdown of the mesh roller for ink transportation, stable mechanical operation, advanced mesh roller for ink transmission, achieving uniform ink transmission, full black color, reasonable structure, simple adjustment and operation, and convenient maintenance. The printing effect is clear and ink is saved.

Technical Data:

1. BASIC Parameter:
Model KWE800*8
Printing Colors 8 Colors
Printing Speed 180M/min
Max. Material Width 800mm
Max. Printing width 760mm
Max. Printing length 250mm per color
Printing material thickness 25-250g/m²
Registration Accuracy ±2mm
Thickness of Printing Plate 4-6mm
Anilox Roller Ceramic anilox roller
Ink Water Based or Solvent Based
Total Power 28KW
Total Weight Aprox.6000kgs
Oversize 12*1.8*2.8meter
Power Supply 3Phase,380V,50Hz
2. Feeding part
Max.unwinding diameter 1200mm
Unwinding method Center unwinding
Loading and unloading methods By cylinder
EPC at Unwinding By Photoelectricity
Magnetic powder constant tension 10N
air shaft 1pcs



3.Printing part
Gear motor Variable frequency control 2.2kw
Main motor transmission mode Timing belt drive
Printing Speed control By inverter
Anilox Roller Ceramic anilox roller
Matching method Helical gear alignment
Automatic ink transport after Shutdown Power :40w  every color
Printing Plate Pull up and down by cylinder
4.Drying part
Drying when printing 2pcs
5. Rewinding part
Rewinding method Double rollers friction rewinding
Variable frequency automatic constant tension 1pcs
air shaft 1pcs
Max.rewinding diameter 1200mm
