【AGENT WANTED!】Are You Interested In Being Our Agent? You’re welcome to contact us!

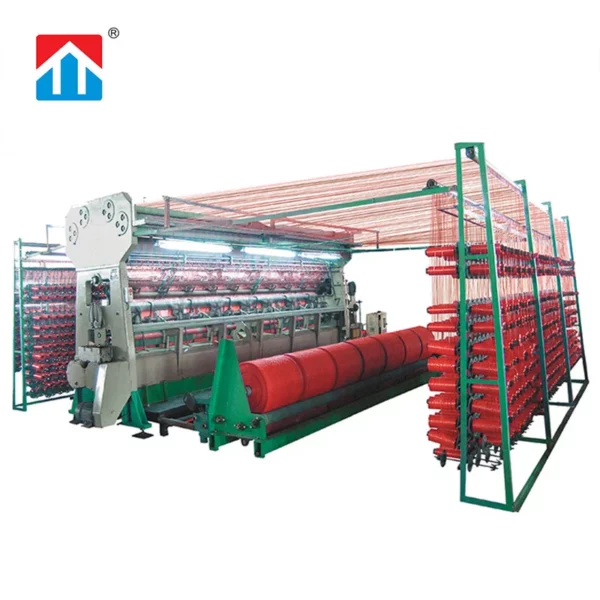

Model: JBZ258” Raschel Double bar Warp Knitting Machine
Needle type: latch needle
Model: JBZ258” Raschel Double bar Warp Knitting Machine
Needle type: latch needle
FEATURES & SPECIFICATION:
| Model | JBZ258” |
| Raschel Double bar Warp Knitting Machine | |
| Needle type | latch needle |
| Gauge | E3（needles/inch） |
| Working width（mm） | 6500mm |
| Number of bars | 4 bars |
| Let -off mechanism | ground comb adapt 3-roll roller for active let-off, pattern comb is used for passive let-off. |
| Batching Device | Free-standing batching device，max. take-up diameter is 1200mm |
| RPM. | 350–500RPM |
| Motor | Main motor : 5.5kw |
| Production Capacity(For mesh bag) | About
Max.20000pcs/24hrs (for size 50cm*80cm) |
| Machine size（mm） | 8500×1600×2100（L×W×H） |
| Installation size（mm） | 9000×8000（L×W） |
| Weight（kg） | 14000kg |
| Payment | 30% deposit ,the balance 70% before shipment |
| Delivery: | 30 days after receiving your deposit |
| Packing: The machine is packed by container, spare parts and electricity box are packed in cartons | |
| Installation and commissioning :we’ll send the technicians to install and debugging the machine in your factory till the machine can produce the net fabric provided by the client ,then debugging qualified finished, but the accommodation, international round-trip airfare cost should be paid by your side，and USD120 /day as salary. | |
Technology service and after-sale service:
| Technology service
|
The supplier provide usage manual of equipment. We also supply electricity of equipment and installation drawing.
|
| After-sales service
|
Main parts ,such as shaft, Motor, Reducer are guaranteed for one year after the machine leaves factory. Fittings of the machine will supply at preferential price after one year . |
