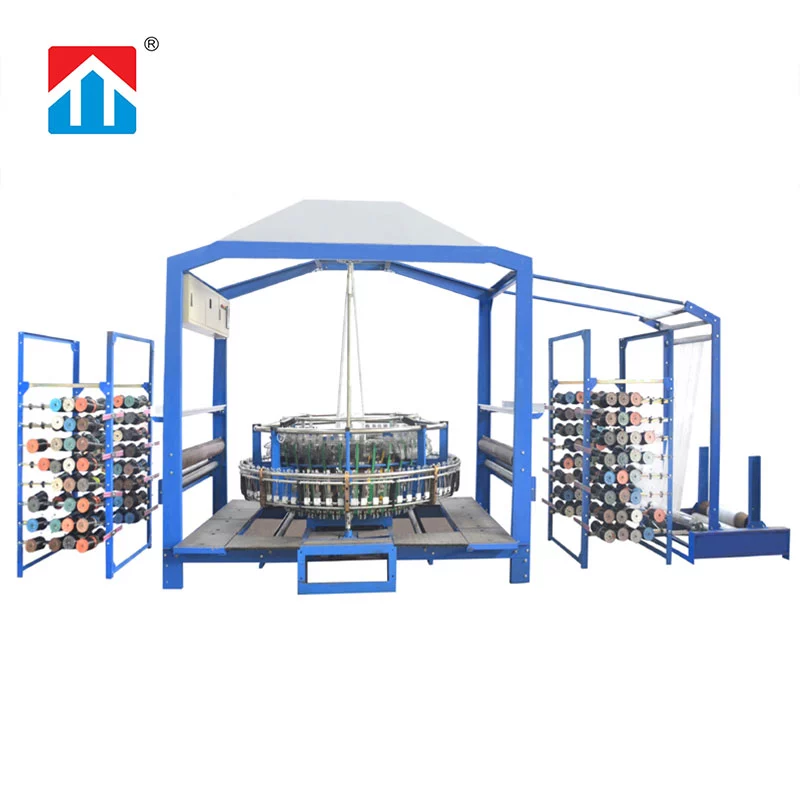

Mesh Bag Circular Loom

*The mesh circular loom produced by our company is using roller contact with the shuttle bottom plate. Replaced the traditional shuttle bottom plate which can change slipping friction into rolling friction, that to avoid the problem of the original slicing fracture.

Performance and characteristics:

*The mesh circular loom produced by our company is using roller contact with the shuttle bottom plate. Replaced the traditional shuttle bottom plate which can change slipping friction into rolling friction, that to avoid the problem of the original slicing fracture. It has the functions of save power, raise the speed and host frequency conversion stepless-speed.

*The mesh circular loom can use plastic round monofilament and flat tape as warp, the flat tape as weft to weave mesh bags and produce package bags for vegetables and fruits by cutting and sewing.

Technical Data:

MODELQF-750/4
Number of shuttle4
Floding width of weaving (mm)300-750
Max. number of warp512
Rotational speed of Main.Motor (r/min)50-115
Production (m/HOUR)60-180
Power of main motor(kw)2.7
Total power (kw)2.7
Installing Dimensions (L×W×H) (mm)7500×2400×2730
Weight (kg)1900
