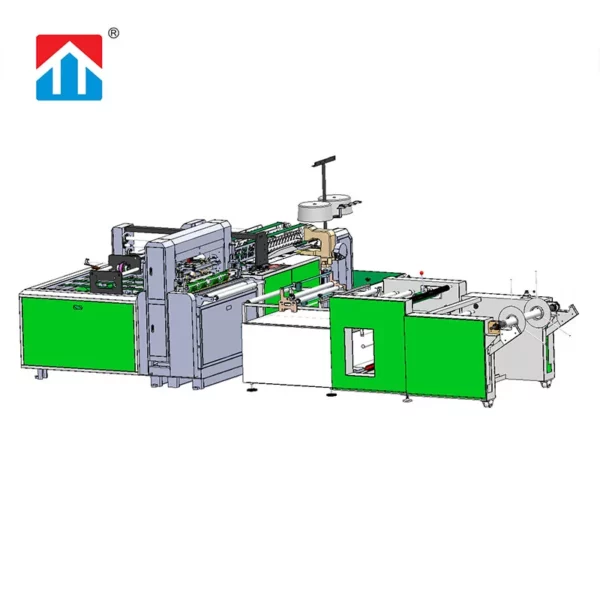

Hot And Cold Cutting And Sewing Machine

【AGENT WANTED!】Are You Interested In Being Our Agent? You’re welcome to contact us!

By Categories

Contact Us

Auto cold and hot cutting and bottom sewing for pp wovenbag to save the labor.
Touch screen (Delta), PLC (OMRON), servo motor (Kaizheng) to control the length of bag precisely
The mouth of the bag is easy open after heating cutting

Auto cold and hot cutting and bottom sewing for pp wovenbag to save the labor.
Touch screen (Delta), PLC (OMRON), servo motor (Kaizheng) to control the length of bag precisely
The mouth of the bag is easy open after heating cutting
Auto counting, integrated feeding.
Pneumatic rolling up, convenient operation.
voltage is 380V / 50HZ / 3PHASE, according to your requirement
the sewing machine head( shang peng brand) with double stitching
software can be bilingual in Englishand Chinese

Model	KWCH-800
Max. Diameter Of Unwinding Roll (Mm)	1200mm
Max. Bag Width(Mm)	800mm
Max Bag Length(Mm)	1300mm
Cutting Precision(Mm)	+-1
Production Capacity	40-60pcs/min
Cutter types	Cold and Hot cutting together on one machine
Gross Power	14kw
Installing Dimensions (LWH)(Mm)	600060001500mm
Weight (Kg)	2200kgs
