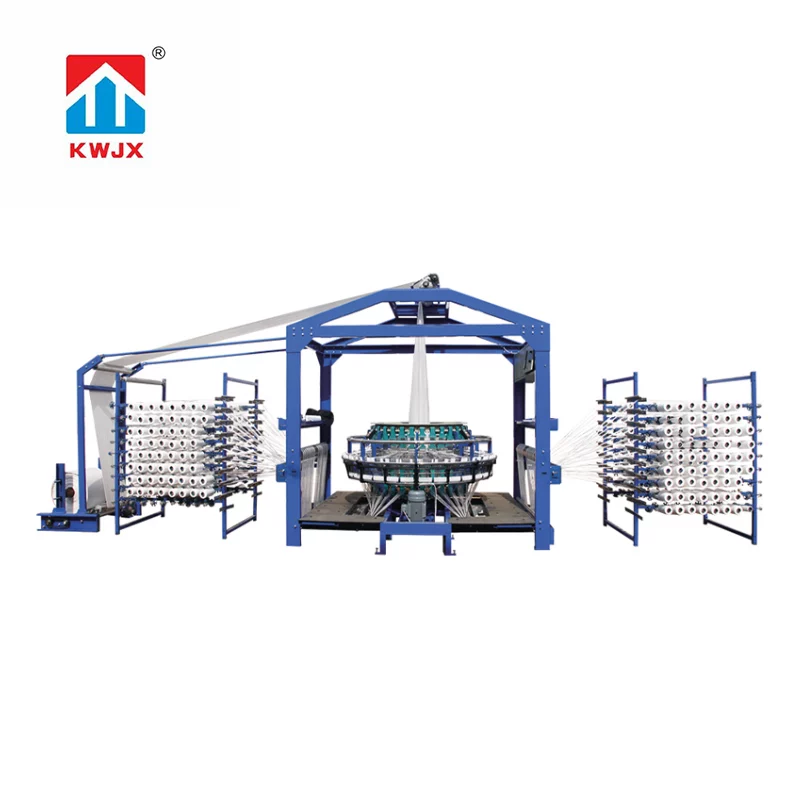

Four Shuttle Circular Loom

【AGENT WANTED!】Are You Interested In Being Our Agent? You’re welcome to contact us!

By Categories

Contact Us

SMALL CAM TYPE AND CONVEX TABLE AS WELL AS SWING-BEAM ROLLING WHEEL TRANSMISSION IS ADOPTED, MAKING IT EASY AND STABLE TO RUN.
SLIDE BLOCK AND ROD ARE ELIMINATED WHILE THE WEARING PARTS ARE DECREASED.
FREQUENCY SPEED REGULATION WHICH IS CONVENIENT AND STABLE ADOPTED.
It IS configured with automtically stop detecting unit when meeting the situation of warp/weft breaking, weft ending. The stoppage unit is sensitive and reliable.
IT’S AN ENVIRONMENTAL PRODUCTS WHOSE NOISE IS NOT MORE THAN 80DB(A).
low strength plastic yarn which is made from 100% regenerated plastic can be adopted to weave.
It is high-efficient and energy-EFFICIENT. The highest rotation speed of the main motor can reach 180r/min and the power is 1.5/2.2kw, which can save 10 thousand degree electricity compared with the traditional four shuttle circular loom whose power is 4kw.
It is a patent device.

MODEL	KW-750/4
Number of shuttle	4
Floding width of weaving (mm)	350-750
Max. number of warp	640/768
Rotational speed of Main.Motor (r/min)	140-180
Production (m/min)	1.4-1.8
Power of main motor(kw)	1.5/2.2
Total power (kw)	2/2.7
Installing Dimensions (L×W×H) (mm)	8300×2200×2730
Weight (kg)	1800
