【AGENT WANTED!】Are You Interested In Being Our Agent? You’re welcome to contact us!
It’s suitable for manufacturing jumbo bag , geotextile, truck tarpaulin by using PP,PE and all synthetic flat wire as raw materials. It’s an ideal choice of weaving machine for knitting industry.
It’s suitable for manufacturing jumbo bag , geotextile, truck tarpaulin by using PP,PE and all synthetic flat wire as raw materials. It’s an ideal choice of weaving machine for knitting industry.

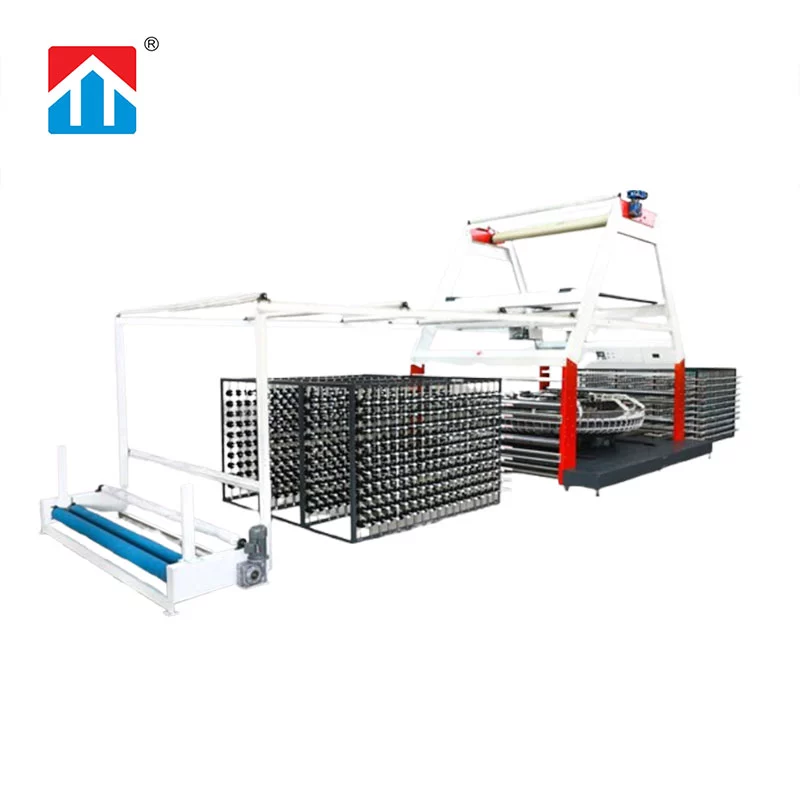

| Model | SBY-2250×10S plastic circular loom | SBY-2250×8S plastic circular loom |
| RPM | 65-75 rpm | |
| Motor Power | 7.5kw
| |
| Shuttles | 10 shuttles
| 8 shuttles
|
| Working width | 1800mm-2200mm | |
| Weft yarn density | Automatic setting, with lifting system,power is 1.1KW | |
| Warp yarn Qty. | Max.2880pcs | |
| Warp yarn dia. | Max.130mm | |
| Weft yarn dia. | Max.115mm | |
| Yarn Feeding system | Active yarn feeding system,inverter control | |
| Weft yarn broken control system | Generator type transmitter，loom will stop automatically if weft yarn is broken. | |
| Warp yarn broken control system | loom will stop automatically if warp yarn is broken. | |
| Meter counter | Electronic meter counter，touch screen display | |
| Winding machine : winder controlled by Inverter | ||
| Winder width | 2250mm | |
| Winder motor | 50kgs torque motor | |
| Winding dia. | Max.1500mm | |
| Installed size | 17M*4M*4.9M | |
| weight | 8T | |
