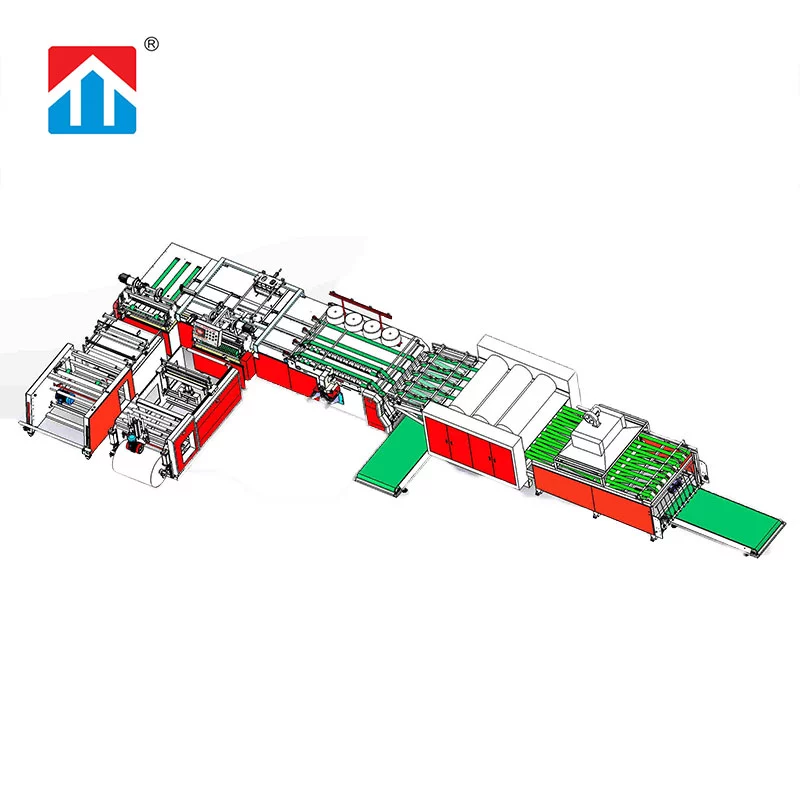

Cutting Sewing And Printing MModel

Performance and characteristics:

1.EPC automatic correction, high-precision automatic cutting of woven bags;
2. Auto PE liner bag inserting and sealing and cutting
3. Automatic bottom sewing of outer bag (inner bag and outer bag can be sewn together or not, automatic bag collection and counting
4. Whole machine PLC microcomputer system control, user-friendly large screen LED interface data display/recording/setting
5.After inserting and sewing, connect to a 3-color printing machine
6. This machine is easy to operate and can be operated by one person
7. The printing part of this machine can be turned off, and can be used as a cutting sewing inserting (3-in-1), or the inserting function can also be turned off as a cutting sewing (2-in-1)

Technical Data:

ModelKWTP-800*3
Max. Diameter Of Unwinding Roll (Mm)1200mm
Outer bag width350-750mm
Outer bag length600-1200mm
Inner bag longer than outer bag length20mm
Inner bag thickness≥0.01mm
Cutting Precision(Mm)±1.5mm
Stitching length7-12mm
Production Capacity30-40 pieces/minute
Main machine frame5000*2000*1100mm
Outer bag feeding unit2600*1500*1400mm
Inner bag feeding unit2700*1350*1650mm
Printing unit2500*1450*1200mm
Printing colors3colors
Installing Dimensions (L*W*H)(meter)About 13m*5m*1.58m
power10kw
