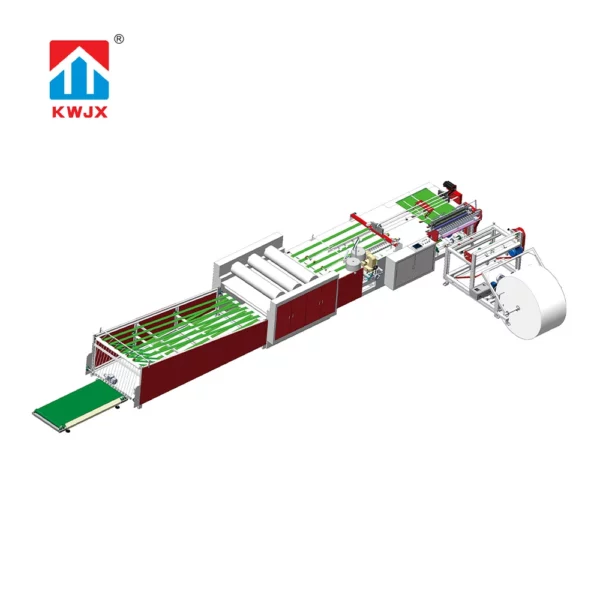

Automatic Hot Cutting & Sewing & Printing Machine

Auto hotcutting and bottom sewing for pp wovenbag to save the labor.(Flat blade or zigzag blade)
Touch screen (Delta), PLC (OMRON), servo motor (Kaizheng) to control the length of bag precisely
The mouth of the bag is easy open after heating cutting

Performance and characteristics:

Auto hotcutting and bottom sewing for pp wovenbag to save the labor.(Flat blade or zigzag blade)
Touch screen (Delta), PLC (OMRON), servo motor (Kaizheng) to control the length of bag precisely
The mouth of the bag is easy open after heating cutting
Auto counting, integrated feeding.
Pneumatic rolling up, convenient operation.
voltage is 400V / 50HZ / 3PHASE（can be customized）
the sewing machine head( shang peng brand) with singlestitchingor double stitching
software is bilingual in Chinese and English

Technical Data:

Model	KWY
Max. Diameter Of Unwinding Roll (Mm)	1200mm
Max. Cutting Width(Mm)	800mm （can be customized for other size）
Max Cutting Length(Mm)	1300mm
Cutting Precision(Mm)	+-1
Production Capacity	40pcs/min
Gross Power	8kw
Installing Dimensions (LWH)(Mm)	1100050001500mm
Weight (Kg)	3000kgs
Printing color number	2/3/4/5
